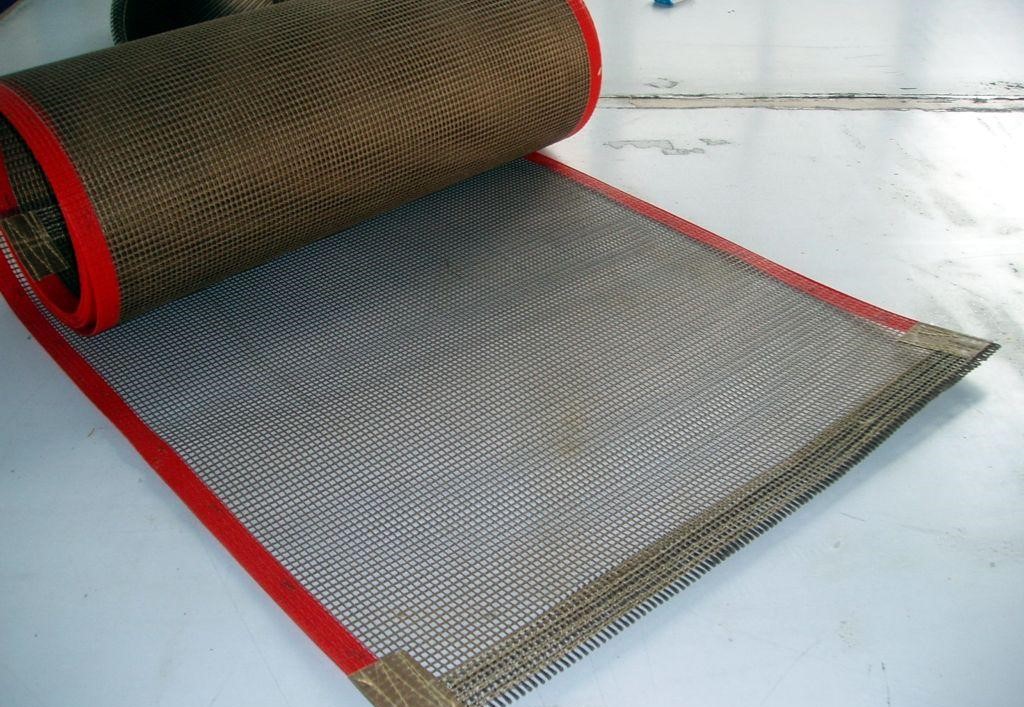

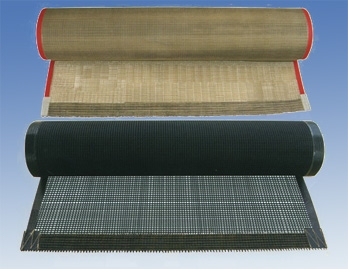

ptfe Mesh conveyor Belt

PTFE Mesh conveyor belt is suspended PTFE (commonly known as plastic king) emulsion as raw material, impregnated high-performance fiberglass cloth. is a high-performance, multi-purpose composite products. Because of its excellent performance, it is widely used in aviation, paper, food, environmental protection, printing and dyeing, clothing, chemicals, glass, medicine, electronics, insulation, grinding wheel slicing, machinery and other fields.

Application Range

A: textile, printing and dyeing: printing drying, bleaching and dyeing cloth drying, shrinkage and drying fabric, non-woven drying and other drying road, baking room conveyor belt.

B: screen, printing: pine dryer, offset Press, UV series of optical solid machine, paper oil drying, ultraviolet drying, plastic products, such as silk screen drying bake road, baking room conveyor belt.

C: Other Items: high-frequency drying, microwave drying, all kinds of food refrigeration and thawing, baking, packaging products, heat contraction, general moisture content drying, ink, such as the rapid drying of baking room guide belt. Where the need for hot airflow and heat transfer conditions, are suitable for the use of PTFE mesh belt.

Main characteristics of PTFE mesh conveyor belt 1, for Low-temperature-70 ℃, High-temperature 260 ℃ between, with weather resistance, anti-aging.

After the actual application, such as 250 ℃ in a row for 200 days, not only the strength will not be lower, and the weight is not reduced, at 350 ℃ high temperature for 120 hours, weight only reduced by about 0.6%, -180℃ ultra-low temperature will not produce cracks, and maintain the original softness. 2, non-adhesion: not easy to adhere to any material.

It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface, and almost all sticky substances such as paste, resin and coating can be easily removed.

3, resistance to chemical corrosion, strong acid, strong alkali and a variety of organic solvents corrosion. 4. Good dimensional stability (elongation coefficient is less than 5), high strength.

With good mechanical properties.

5, bending fatigue resistance, can be used for smaller wheel diameter. 6, chemical resistance, non-toxic.

Almost all pharmaceutical items are resistant to it.

7, fire retardant. 8, breathable---conveyor belt ventilation rate, reduce heat consumption, improve drying efficiency.
