ptfe Mesh conveyor Belt

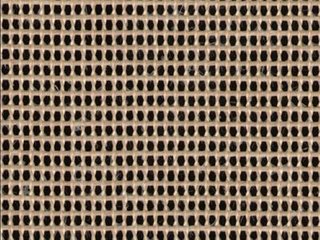

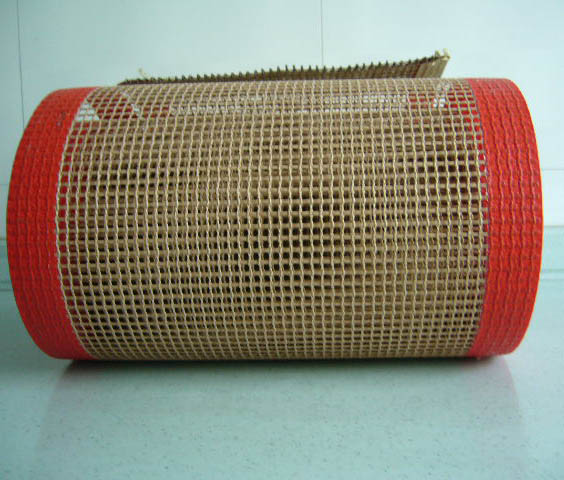

PTFE mesh belt is made of suspension PTFE emulsion as material and impregnated with high performance glass fiber mesh.

Vibration Xin production of PTFE network with the main advantages;

1. Good dimensional stability, high strength, with good mechanical properties;

2. With high insulation performance (small dielectric constant, low friction coefficient) anti-ultraviolet, anti-static;

3. Resistance to chemical corrosion, strong acid, salty, aqua regia and various organic solvents corrosion;

4. Not easy to adhere to any substance.

Easy to clean a variety of grease, stains, or other attachments attached to its surface

The main advantages of PTFE mesh belt: 1. Good dimensional stability (elongation coefficient is less than 5 per thousand), high strength.

With good mechanical properties.

2, bending fatigue resistance, can be used for smaller wheel diameter.

3, air permeability: conveyor belt permeability, reduce heat consumption, improve drying efficiency.

 4, can be used for low temperature-196 degrees, high-temperature 300 degrees, with climate resistance, anti-aging.

After the actual application, such as at 250 degrees in the case of continuous placement of 200 days, not only the strength will not be lower, and the weight will not be reduced, at 350 degrees under the temperature of 120 hours, weight only reduced by about 0.6%, in the case of low temperature of 180 degrees can maintain the original softness.

5,PTFE Network with chemical corrosion resistance, strong acid, strong alkali, aqua regia and a variety of organic solvents corrosion.

6, non-adhesion: not easy to adhere to any material.

Easy to clean all kinds of grease, stains, or other attachments attached to its surface; paste, resin, paint and so on almost all sticky substances can be simply removed.

7, fire-retardant nature.

 8, drug-resistant bright agent, non-toxic, almost all pharmaceutical products can be resistant

PTFE mesh belt uses: Apply to printing and dyeing, printing industry flat-width dryer, drying room conveyor belt; superheater conveyor belt, flocking conveyor belt, far-infrared dryer conveyor belt, screen printing, electronics, circuit board industry drying production line conveyor belt, UV glazing machine, UV light solid conveyor belt, packaging materials industry coating machine, glue machine,

Composite conveyor belt, garment industry shrink molding machine conveyor belt, food industry drying production line conveyor belt. Vibration Xin Mesh Belt according to the latitude and longitude can be divided into a single by double Wei PTFE mesh belt (increase tensile strength), single by Tan (easy to debug run deviation), in accordance with the color, beige, brown (anti-infrared), black (anti-UV, anti-static)
