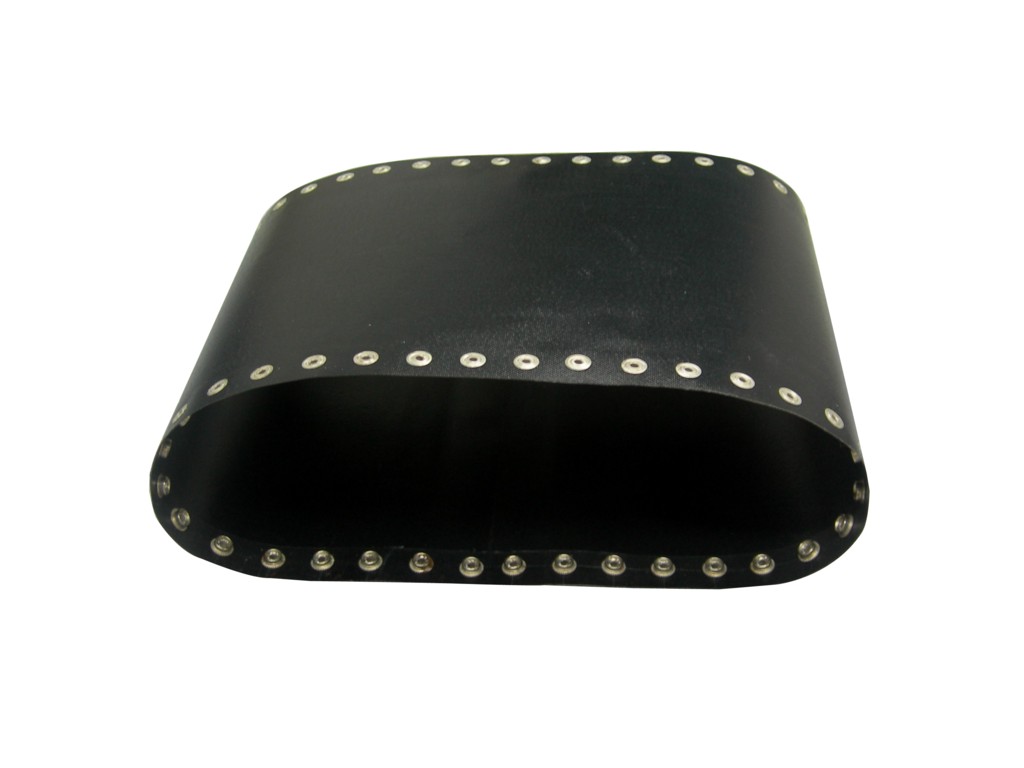

Seamless fusing Machine Belt

Seamless fusing machine belt

1.  Seamless adhesive machine belt: PTFE fluorine resin seamless fiber conveyor belt, which uses high-strength fiberglass yarn or a Kevlar (Aramid) through the circular weaving equipment woven tubular fabric, thoroughly overcome the previous conveyor belt interface connection, laminated pressure connection, hot-pressing connection, such as the connection between the break, the connection beat, the junction circumference and so on, resulting in poor stability, running and so on.

　PTFE Resin Seamless fiber conveyor belt life expectancy than any of the connection of PTFE conveyor belt longer than 5 times times.

2. Double-layer composite fusing Machine belt:

Double-layer composite belt with anti-static paint cloth, the outer surface with tear-resistant fiber cloth, the overall dislocation compound. The strength increases greatly, the use time is long, the overall thickness is even, the resistance is good, the surface is smooth and delicate, the processing ultra thin adhesion lining is better.

3. Common seam bonding Machine belt:

The common seam belt uses the entire import base material to weave, since spreads, the surface is bright, the price concessions. 4. Teflon Seamless ring Sealing tape

Main performance Features: 1, for Low-temperature-196 ℃, High-temperature 300 ℃ between, with weather resistance, anti-aging.

After practical application, such as in 250 ℃ high temperature, the continuous placement of 200 days, not only the strength will not be lower, and the weight is not reduced, at 350 ℃ high temperature 120 hours, weight only reduced by about 0.6%, in -180℃ ultra-low temperature and can maintain the original softness. 2, non-adhesion: smooth surface, not easy to adhere to any material.

It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface, and almost all sticky substances such as paste, resin and coating can be easily removed;

3, resistance to chemical corrosion, strong acid, strong alkali, aqua regia and various organic solvents corrosion. 4, chemical resistance, non-toxic.

Almost all pharmaceutical items are resistant to it.

5, with high insulation performance (dielectric constant small: 2.6, tangent to under 0.0025), Anti-ultraviolet, anti-static.

6, easy to use, long service life. 7. Good dimensional stability (elongation coefficient is less than 5), high strength.

With good mechanical properties.

8, bending fatigue resistance, can be used for smaller wheel diameter.

9, Fire retardant

Use range:

A: It is widely used in the mechanical matching of the adhesive interlining with hot pressing

B: All kinds of food baking, frozen food thawing (rice, rice cakes, sweets, etc.)

C: Various electronic components welding conveying machinery supporting

D: Industrial Pharmaceuticals, rubber film, electrical parts heat treatment, heat and non-stick special conditions of transport belt

E: Rust-proof binder for automotive parts, transport with acid, alkali and corrosive articles

Specifications: Belt "width, length, thickness" can be customized according to customer requirements. Color: Brown, Black
